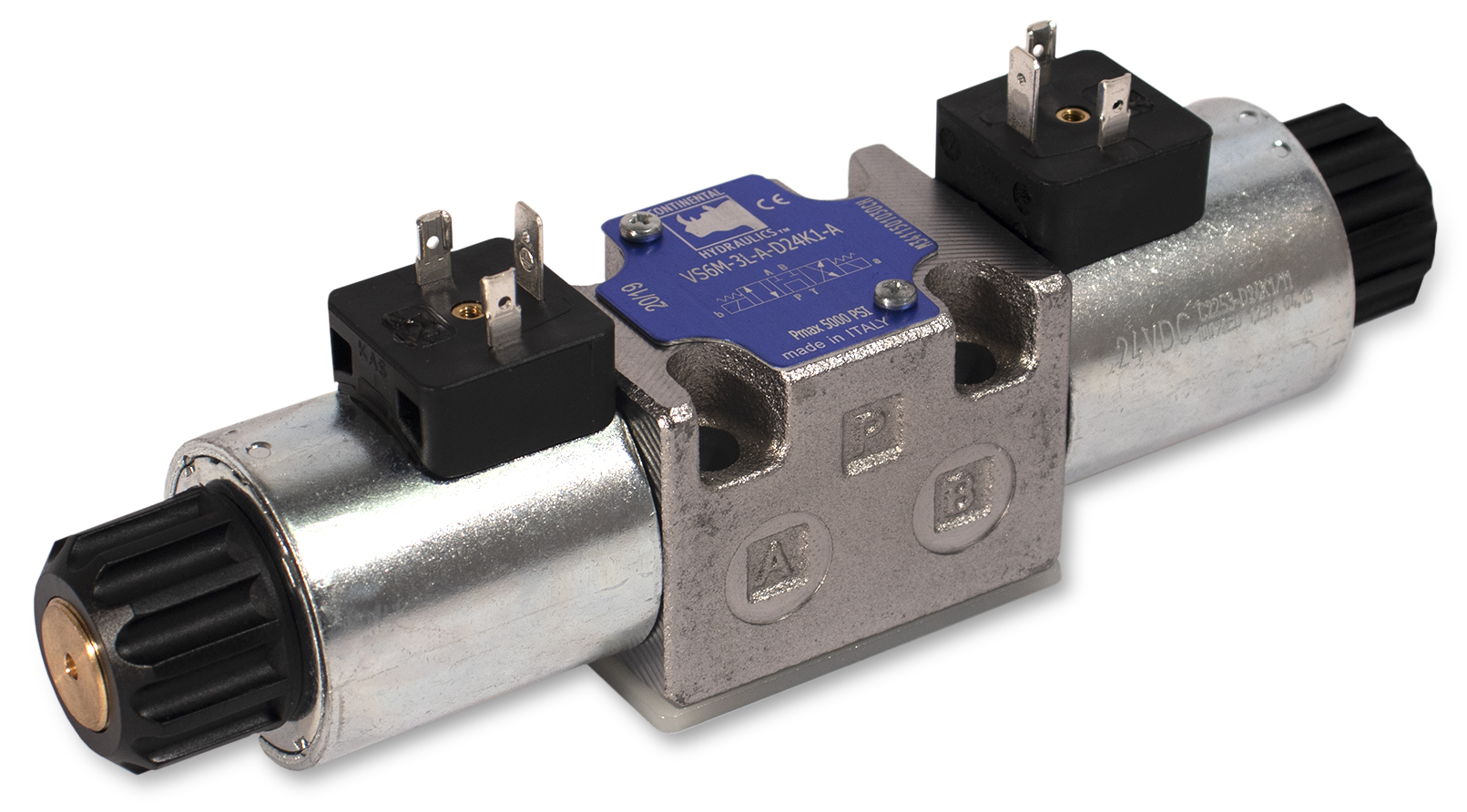

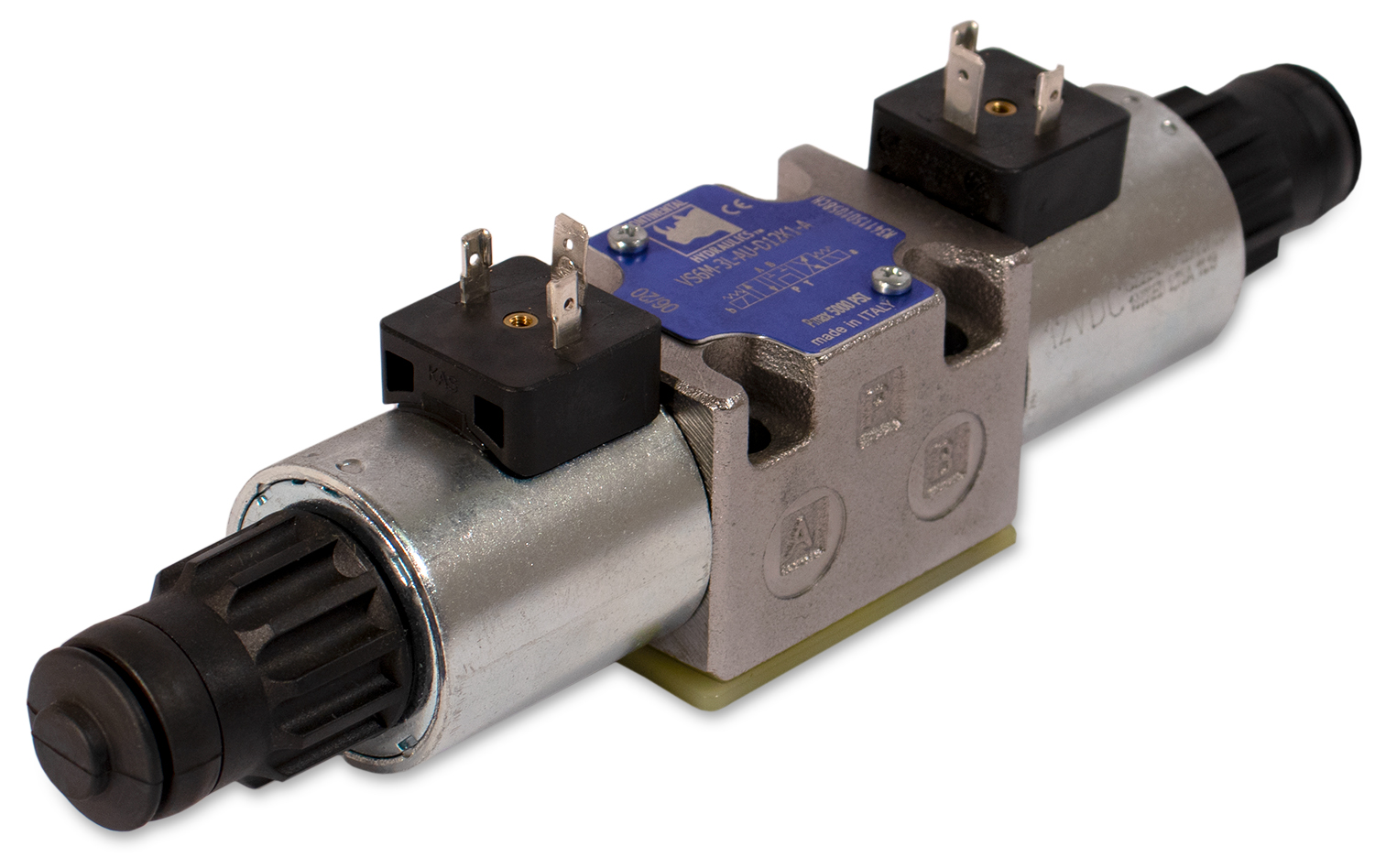

VS6M - DIRECTIONAL CONTROL VALVES - Solenoid - Direct Operated
Description

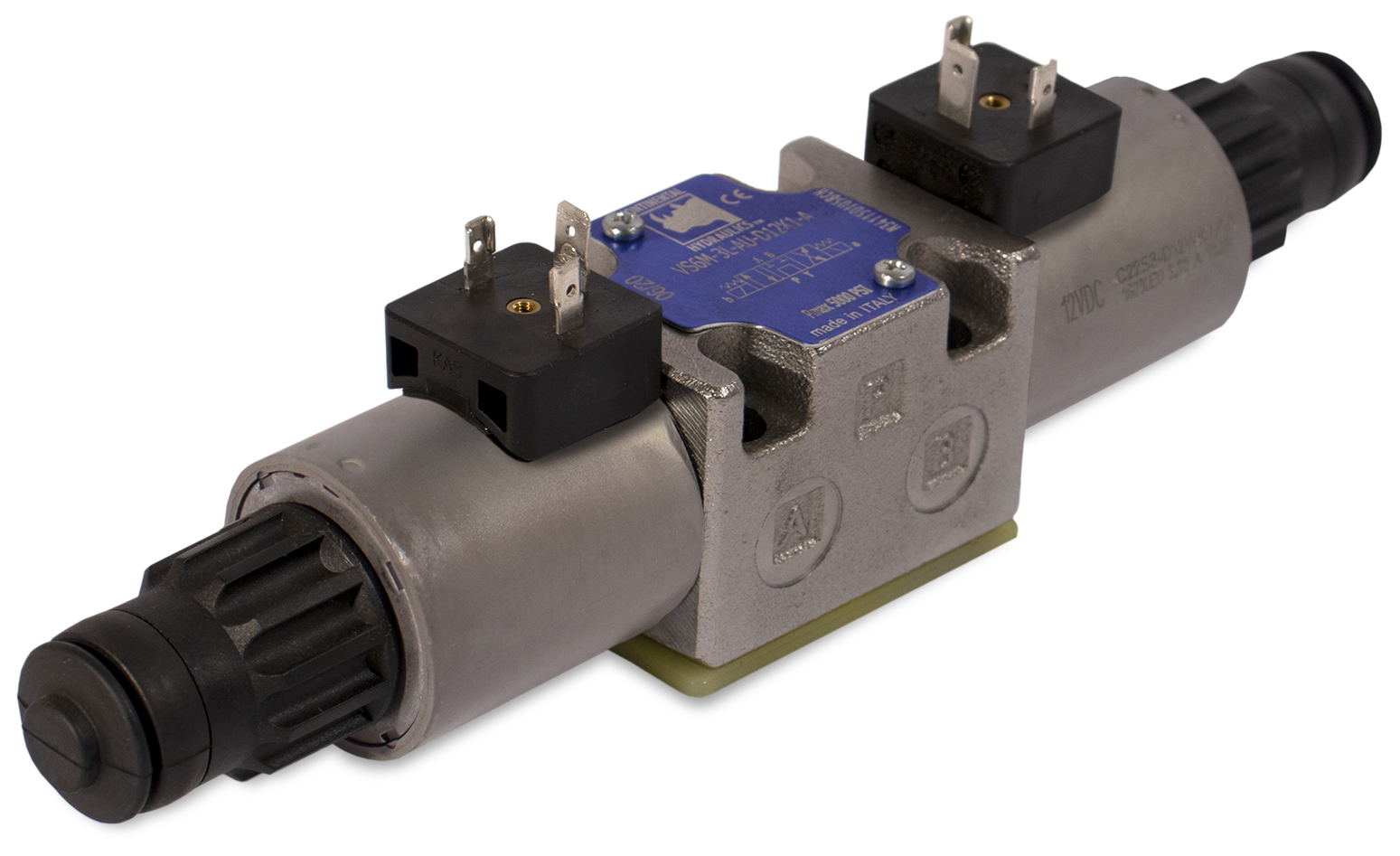

The VS6M series valves are ideal for application in Washdown and outdoor mobile environments, and are supplied with a zinc-nickel surface treatment suitable to ensure a salt spray resistance up to 600h (test operated according to UNI EN ISO 9227 standards and test evaluation operated according to UNI EN ISO 10289 standards).
The valve body is made with high strength iron castings with internal passages designed to minimize pressure drop.
The valve can be supplied for valve functions requiring 2 positions or 3 positions, as well as 3 way or 4 way flow functions.
Key Features:

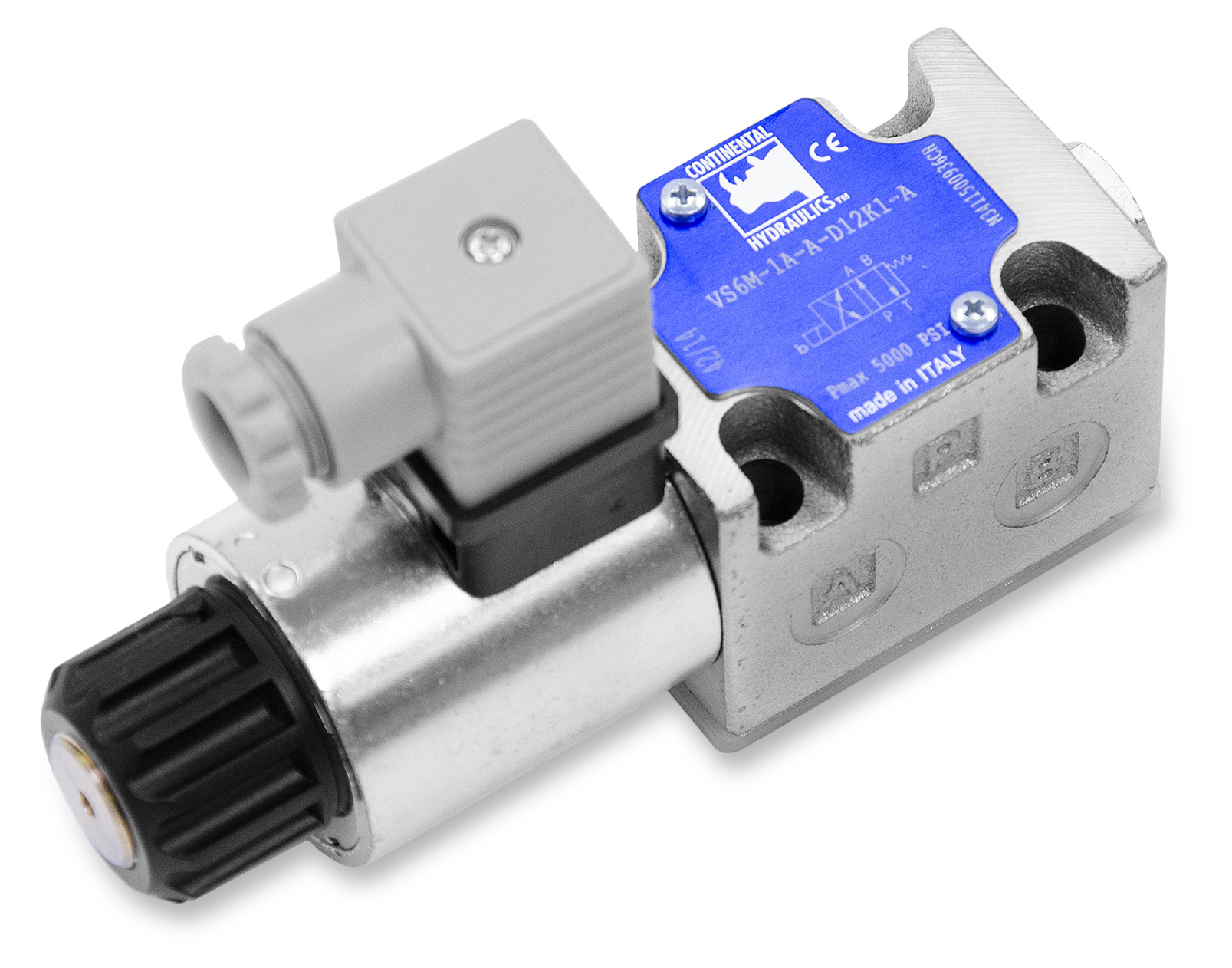

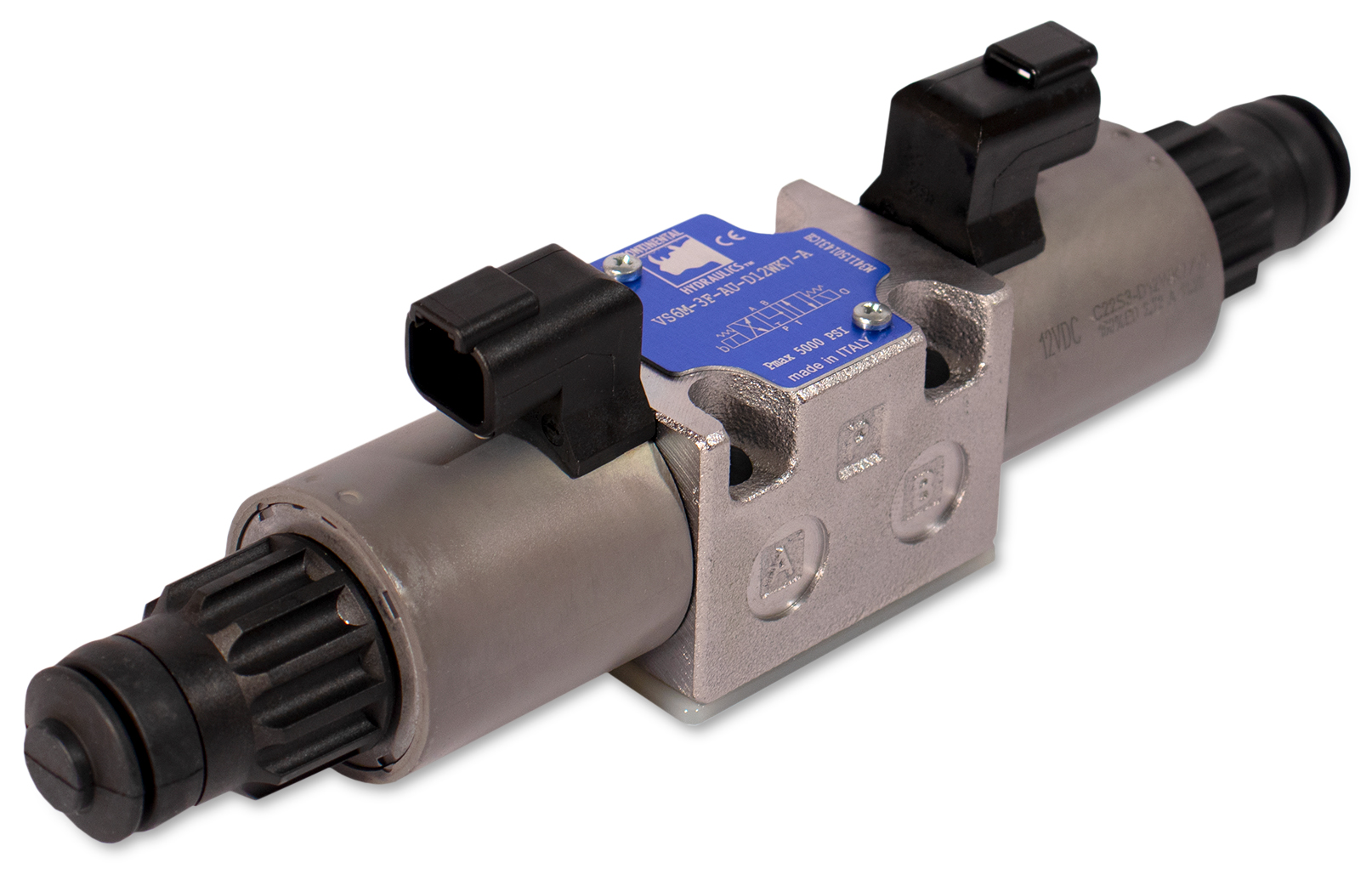

- Coil connections include DIN 43650, AMP junior, DEUTSCH DT04-2P
- Flows to 20 GPM and multiple spool options
- With 5000 PSI rated work ports and the tank port is rated to 3000 PSI
- These coils will also have the Zinc-Nickel surface treatment for all 12 and 24 VDC coils.
- VS6M
VS6M
pdf
VS6M_Valve_Spec_1019381_Rev8-24
Size: 3.05 MB
Hits: 1847
Date added: 08-15-2024
Date modified: 08-15-2024
- VS6M (DC)
VS6M (DC)
zip
VS6M-2, 3 K7 (DEUTSCH) DC SOL DES A
Size: 355.51 KB
Hits: 327
Date added: 10-27-2018
Date modified: 10-27-2018
zip
VS6M-2, 3 K2 (AMP JR) DC SOL DES A
Size: 413.65 KB
Hits: 360
Date added: 10-27-2018
Date modified: 10-27-2018
zip
VS6M-2, 3 K1 (DIN) DC SOL DES A
Size: 345.05 KB
Hits: 360
Date added: 10-27-2018
Date modified: 10-27-2018
zip
VS6M-1_5_K7D DC COILS REV
Size: 494.43 KB
Hits: 270
Date added: 10-27-2018
Date modified: 10-27-2018
zip
VS6M-1, 5, 6, 9 K7 DC SOL REV DES A (2)
Size: 318.50 KB
Hits: 239
Date added: 10-27-2018
Date modified: 10-27-2018
zip
VS6M-1, 5, 6, 9 K7 DC SOL REV DES A
Size: 350.46 KB
Hits: 240
Date added: 10-27-2018
Date modified: 10-27-2018
zip
VS6M-1, 5, 6, 9 K7 DC SOL DES A
Size: 316.13 KB
Hits: 260
Date added: 10-27-2018
Date modified: 10-27-2018
zip
VS6M-1, 5, 6, 9 K2 (AMP JR) DC SOL DES A
Size: 4.32 MB
Hits: 286
Date added: 10-27-2018
Date modified: 10-27-2018
zip
VS6M-1, 5, 6, 9 K1 (DIN) DC SOL REV DES A
Size: 310.43 KB
Hits: 305
Date added: 10-27-2018
Date modified: 10-27-2018
zip
VS6M-1, 5, 6, 9 K1 (DIN) DC SOL DES A
Size: 8.63 MB
Hits: 309
Date added: 10-27-2018
Date modified: 10-27-2018
